When to send the data depends on what service(s) the Stamplicity service department is providing for you.
RFQ Data:
T-SIM can quote new tooling simulation using: just a detailed 2D or 3D Process File (flowchart), or with a design that is ready for simulation, or anything in-between. Just let us know the status of the data provided (example: for quote use only, use for running R1 simulation, etc.).
This one is easy... Send it to us anytime, we cant wait to show you what we can do!

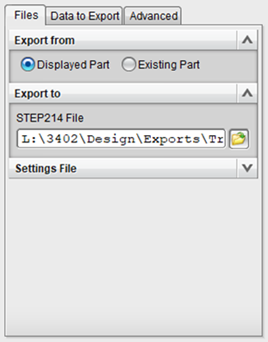

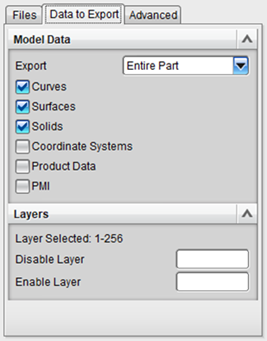

STEP Format. Stamplicity's Service department requires STEP data exported in STP/STEP 214. If you would like to test your export STP/STEP 214 data, send a file to
Service@Stamplicity.com and put "Translation Test File" in the subject line, or contact our office at 616-863-8630 and we'll work with you to ensure smooth data transfers between us.
Do I need to save one Step file or multiple Step files?
Generally, we prefer (1) Step file following the appropriate assembly structure (below). If your file size will be larger than approx. 1.5GB, then you can send multiple step files organized in the following manner:
Lower assembly at “die-closed-position”
Upper assembly at “die-closed-position”
Parts at “die-closed-position”
Grippers, Bars, Press at “pick-up position”
Please Note: We DO NOT need the grippers shown in multiple locations, it is preferred that they are only shown at the pickup position. Additional locations just add clean up time for our technicians and cost for you!
What is T-SIM's preferred Assembly Structure?
Lower Assembly – All lower components in “die-closed-position”
If using aerial cams, the aerial cam drivers should be included in the lower assembly
Upper Assembly – All upper components in “die-closed-position”
If using die mount cams, the cam drivers should be included in the upper assembly
Part Assembly – An accurate representation of the part in each station in “die-closed-position”
Press Assembly – Bolster, ram, transfer bars, etc.
- Front Bar Assembly – Front transfer bar and grippers/fingers in “pick-up-position”
- Back Bar Assembly – Back transfer bar and grippers/fingers in “pick-up-position”
Additional Gripper/Finger Information (if available)
It is important that we have fingers positioned properly in the tooling to ensure accuracy of the simulation.
Any connecting components such as couplers, extensions, etc., between the bars and fingers should be shown as well.
Please make sure the models supplied in the data are the actual models used in the stamping facility.
